| Order # |
Ref. |
Picture |
Price: /pc |
| All Available |
WILLIAMS System 3-7 POWER BOARD D7999 |
 |
Price on actual pcb |

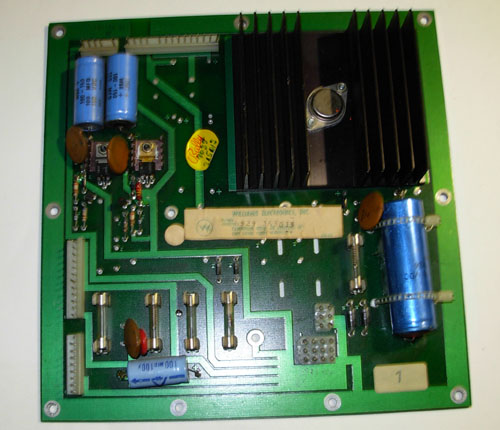

| WIL-PCB-POWER-D7999-1 |
WILLIAMS System 3-7 POWER BOARD D7999 |
 |
Pris: 500 kr Price € 50 Export price: $ 55 |

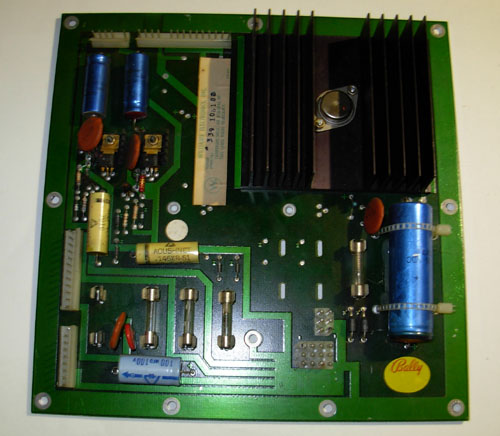

| WIL-PCB-POWER-D7999-2 |
WILLIAMS System 3-7 POWER BOARD D7999 |
 |
sold |
|
|
X3 - SH1275 / 78H05 // D7-8 - MR500 // C15 -
12000uF/16V // C16-17 - 0,1uF //+/ Q1 - SDS-201 / 5A9057 // Q2 - MPSD52
// D3 - 1N4004 // Z1 - 3,9Vz - 1N5990 // Z2 - 100Vz - 1N4764 // C7
- 100uF/150V // C8 - 0,1uF // R1 - 39k // R2 - 680ohm // R3 - 330k
//-/ Q3 - SDS-202 / 5A9058 // Q4 - MPSD02 / 5A9056 // D4 - 1N4004
// Z3 - 3,9Vz - 1N5990 // Z4 - 100Vz - 1N4764 // C11 - 100uF/150V
// C12 - 0,1uF // R4 - 39k // R5 - 680ohm // R6 - 330k |
|
|
|
|
|
