| Order # |
Ref. |
Picture |
Price: /pc |
| BALLY-PCB-AS-2518-22-Driver-4299 |
BALLY AS-2518-22 Solenoid Driver Board
|
 |
Sold |
| BALLY-PCB-AS-2518-22-Driver-4301 |

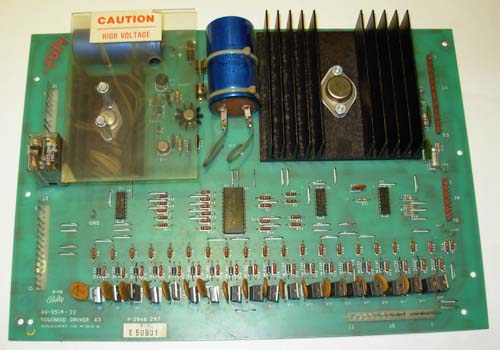

BALLY AS-2518-22 Solenoid Driver Board OK Tested 2018.Mar.08 |
 |
Pris: 1250 kr Price € 135 Export price: $ 150 |
| BALLY-PCB-AS-2518-22-Driver-4303 |

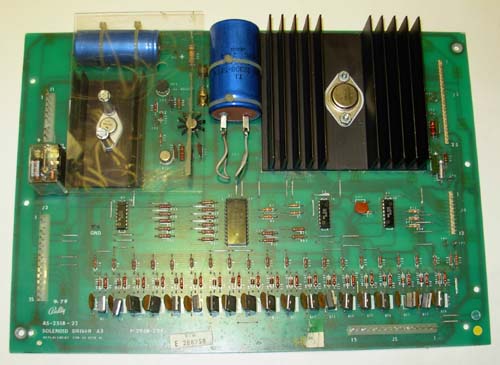

BALLY AS-2518-22 Solenoid Driver Board OK Tested 2018.Mar.08 |
 |
Pris: 1250 kr Price € 135 Export price: $ 150 |
| BALLY-PCB-AS-2518-22-Driver-4304 |

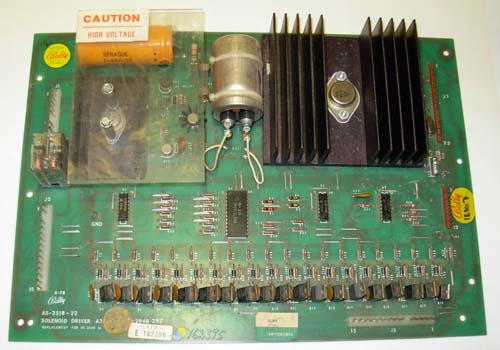

BALLY AS-2518-22 Solenoid Driver Board OK Tested 2018.Mar.08 |
 |
Pris: 1250 kr Price € 135 Export price: $ 150 |
| BALLY-PCB-AS-2518-22-Driver-4307 |

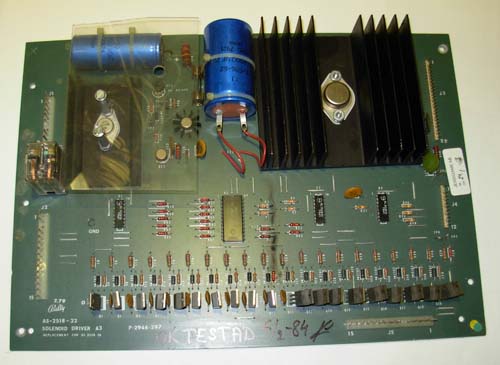

BALLY AS-2518-22 Solenoid Driver Board OK Tested 2018.Mar.12 |
 |
Pris: 1250 kr Price € 135 Export price: $ 150 |
| BALLY-PCB-AS-2518-22-Driver-4308 |

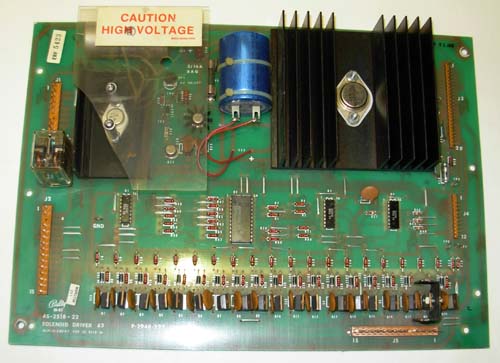

BALLY AS-2518-22 Solenoid Driver Board OK Tested 2018.Mar.12 |
 |
Pris: 1000 kr Price € 110 Export price: $ 120 |
| BALLY-PCB-AS-2518-22-Driver-NoHV |
BALLY AS-2518-22 Solenoid Driver Board
|
Also Available Tested +5DC & Drivers OK but bad or no High Volt ( For Games with LED Displays ) |
Pris: 500 kr Price € 55 Export price: $ 60 |
|
|
TP |
GND // TP1 +5(6)VDC // TP2 +190VDC Display //
TP3 +5VDC Reg. // TP4 +210VDC // TP5 +13VDC // TP6 // TP7 |
|
|
|
IC |
U1- ULN2081A / CA3081 // U2- 74LS154 // U3- ULN2081A
/ CA3081 // U4- ULN2081A / CA3081 // Q1-19 - 5amp
> TIP122 / 8amp > 585-34 / (GE) X44E198 / TIP102
/ 2N6045 / TIP132 / 10amp > SE9302 / BDX33C //
Q20- E710 / LM323 / UA78H05 // Q21- 585-42 / 2N3584 // Q22- 2N3440
// Q23- 2N3440 // CR21- 1N4004 // VR1- 598-10 / 1N5275A |
|
